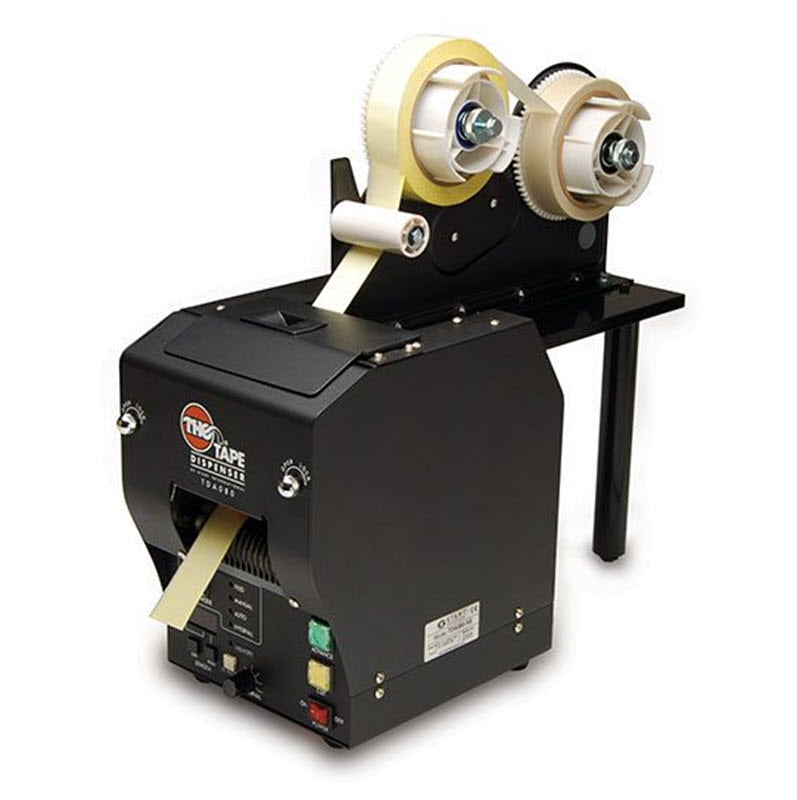

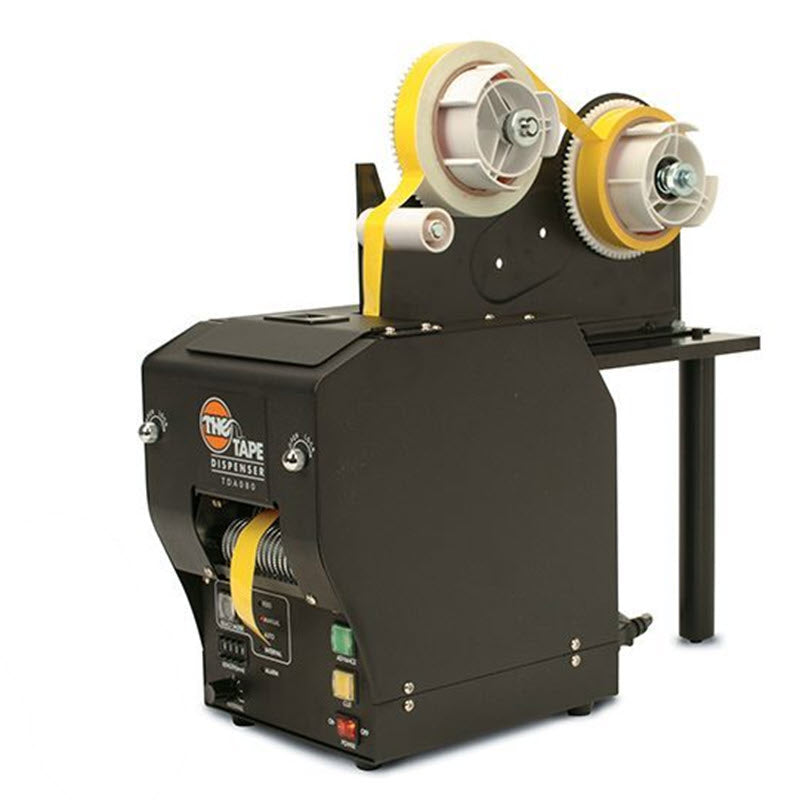

Electric Tape Dispenser 2 Tape Laminator - TDA080-LAM

The START International TDA080-LAM is a premier industrial-strength solution designed for high-volume production environments. As a specialized electric tape dispenser, it features an integrated laminator that automatically bonds tapes together before dispensing, providing a seamless workflow for specialized packaging and manufacturing needs.

This heavy-duty machine is engineered to handle most tape types up to 2 inch wide, making it a versatile workhorse for rigorous, repetitive taping operations.

Precision Performance and Digital Accuracy

The TDA080-LAM eliminates waste and increases efficiency through its advanced digital programming. Users can quickly set a specific length, and the machine will consistently deliver cuts with a precision accuracy of +/- 1mm. This level of repeatability is essential for maintaining quality control on fast-moving assembly lines.

4 Versatile Modes of Operation

To accommodate various workflow requirements, the TDA080-LAM offers four distinct operating modes:

• Manual Feed / Manual Cut: Complete operator control for custom tasks.
• Manual Feed and Cut: Semi-automatic assistance for steady pacing.
• Auto Feed and Cut: Boosts throughput by automating the entire cycle.
• Interval Feed and Cut: Perfect for timed production sequences and team-based tasks.

Why Choose the TDA080-LAM for Industrial Taping?

Originally introduced by START International, the TDA080 series is synonymous with durability. The "LAM" model specifically addresses the needs of operations requiring instant lamination, saving time by combining two steps into one automated process.

Features:

• Laminates two (2) rolls of tape together
• Laminates, dispenses and cuts tape to predetermined, definite lengths
• Automatically dispenses and cuts most types of tape
• Designed for continuous, industrial-use applications
• Compact design and heavy-duty metal construction
• Accepts tape widths from .25" to 2"
• Cut lengths from 1.6" to 394" (40 to 9999mm)
• Accuracy /- .04" (dependent on type of tape)
• 9" maximum outside diameter roll
• Digital push switch display for easy length adjustments
• Adjustable feed intervals
• Safety interlock
• Can dispense some non-adhesive materials
• Switchable voltage (115V or 230V)
• Four operating modes (Manual Feed / Manual Cut, Manual Feed & Cut, Auto Feed & Cut and Interval Feed & Cut)
• Optional foot switch available, contact us for pricing
• Optional serrated cutting blade for thick tapes, TDA080P279S
