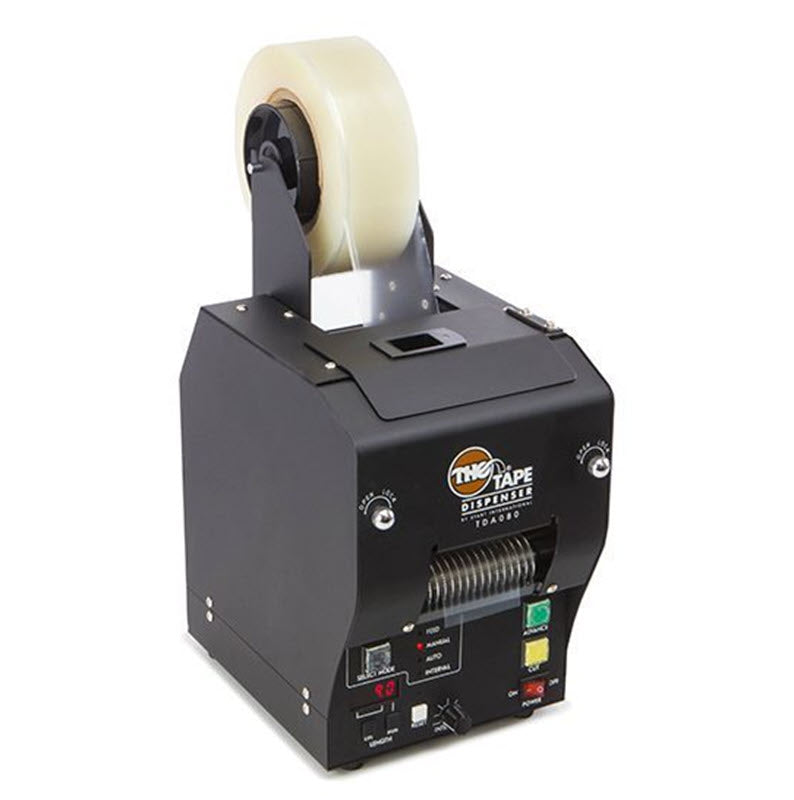

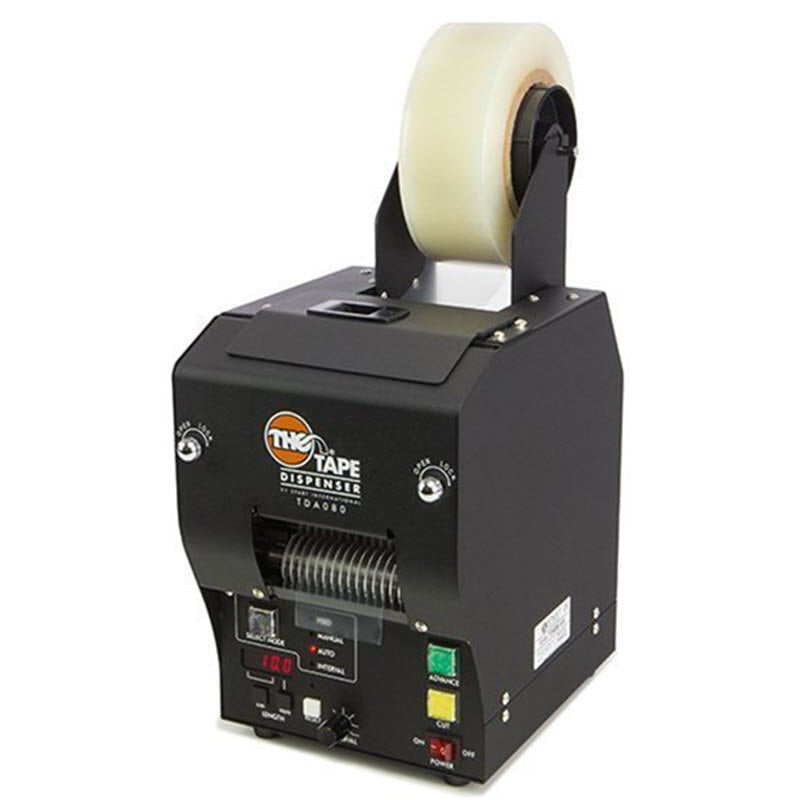

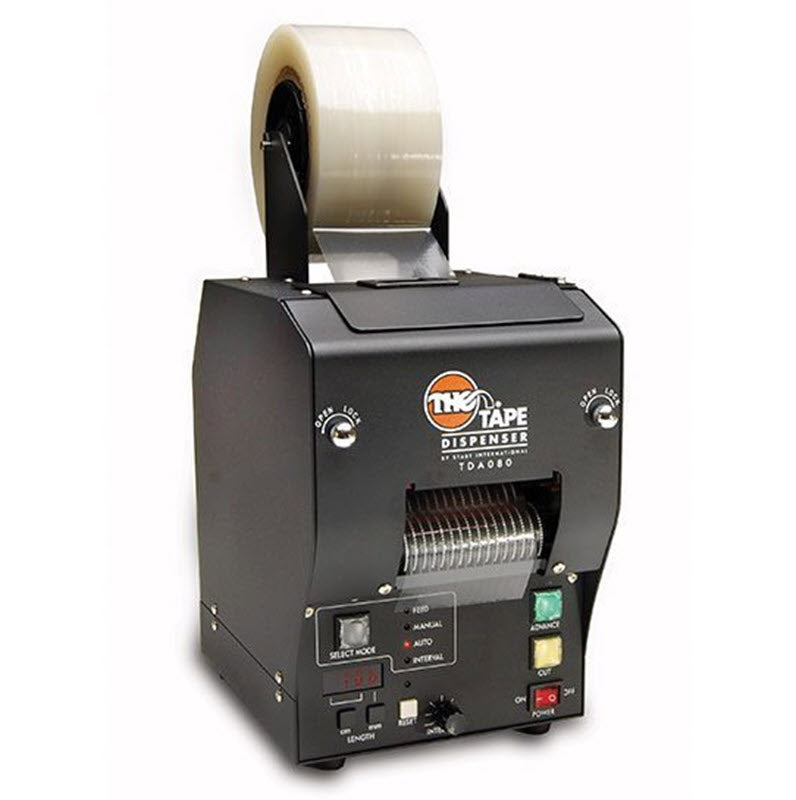

Heavy Duty Electric Tape Dispenser 3.15 inch Wide for Protective Film TDA080-NM

The START International TDA080-NM is a high-performance industrial dispenser specifically engineered for the demands of high-volume production lines. Optimized for protective film and heavy-duty adhesives, this automatic machine dispenses and cuts most types of tape up to 3.15 inch wide.

Equipped with a standard 3 inch core, the TDA080-NM features specialized modified rollers. These rollers are uniquely designed to handle the surface tension of protective films, preventing slippage and ensuring smooth, consistent delivery during repetitive taping operations.

High-Speed Performance and Digital Precision

Maximize production efficiency with an easy-to-use digital interface. The TDA080-NM allows for rapid length programming, delivering precise cuts with a proven accuracy of +/- 1mm. This level of repeatability is essential for maintaining strict quality control in fast-paced manufacturing environments.

4 Versatile Operating Modes

Tailor the dispenser to your specific workflow with four distinct operating modes:

• Manual Feed / Manual Cut: Provides full operator control for custom applications.
• Manual Feed and Cut: Offers one-touch dispensing for semi-automated tasks.
• Auto Feed and Cut: Automatically prepares the next piece of film for maximum throughput.
• Interval Feed and Cut: Dispenses at pre-set time intervals, perfect for timed assembly lines.

Why Choose the TDA080-NM for Industrial Film?

Originally introduced by START International, the TDA080 series is the industry standard for durability. The "NM" model is specifically modified for protective film applications. Its rugged construction is built to withstand the rigors of industrial use while providing a high-speed solution for your dispensing needs.

Features:

• Modified TDA080 with special flat tape advancement rollers for protective films and foil tapes
• Automatically dispenses and cuts virtually any tape - including duct tape
• Designed for continuous industrial use applications
• Compact design and heavy-duty metal construction
• Accepts tape widths from .25" to 3.15"
• Cut lengths from 1.6" to 394"
• Accuracy /- .04" (dependent on type of tape)
• 9" maximum outside diameter roll
• Digital push switch display for easy length adjustments
• Comes with standard 3? core
• Adjustable feed intervals
• Safety interlock
• Can dispense some non-adhesive materials
• Switchable voltage (115V or 230V)
• Four operating modes (Manual Feed / Manual Cut, Manual Feed & Cut, Auto Feed & Cut and Interval Feed & Cut)
• Optional foot switch available, contact us for details.
• Optional serrated cutting blade for thick tapes, TDA080279FS
