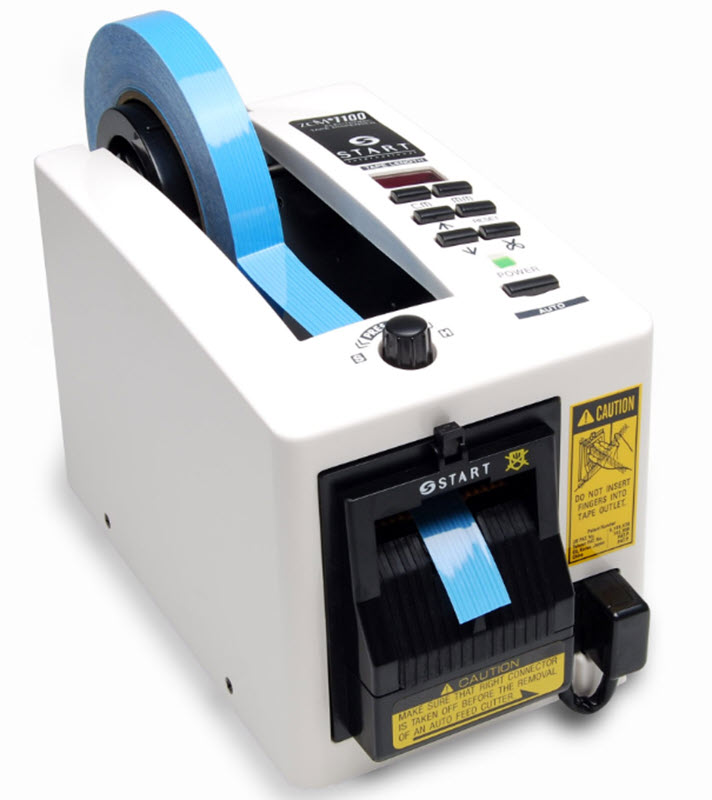

ZCM1100K Electric Tape Dispenser 2 inch Wide with Safety Guard and Creaser
ZCM1100K Electric Tape Dispenser 2 inch Wide with Safety Guard and Creaser is backordered and will ship as soon as it is back in stock.
Shipping Estimate
Shipping Estimate
Add to cart, then view cart for shipping estimate. It will be towards the top right "Estimate shipping" just above the total.
Freight charges are created by UPS LIVE, we have NO control over the cost.
ZCM1100K Electric Tape Dispenser 2 inch Wide with Safety Guard and ...
ZCM1100K Electric Tape Dispenser 2 inch Wide with Safety Guard and Creaser is backordered and will ship as soon as it is back in stock.
Description
Description
The ZCM1100K is a high-performance electric tape dispenser engineered for medium to high-volume industrial production. Featuring a specialized integrated creaser, this model is specifically designed to handle thin materials like Kapton® tape with precision.
Enhanced Safety and Precision Cutting
The ZCM1100K prioritizes operator safety without sacrificing speed. It features a safety guard cutting head that prevents the guillotine blade from activating if a finger or tool is detected. An onboard photosensor ensures consistent feeds and a professional straight edge every time.
RECOMMENDED: We recommend that you send in a roll of your tape so that it can be tested to be sure that this is the correct dispenser for your needs. Contact us for details.
Key Technical Specifications
- Tape Width: 0.5" to 1.2"
- Max Roll Diameter: 7"
- Adjustable Lengths: 1.2" to 39"
- Build: Steel frame with anti-static composite cabinet
Versatile Programming and Industrial Build
The LED display panel allows users to program exact lengths, while the manual override button permits custom cuts on the fly. To ensure durability, the dispenser is constructed with a rugged steel frame and a flame-retardant cabinet.
Features:
- Safety guard system prevents activation of the cutter when foreign objects are present (fingers, tools, etc.)
- Automatically advance and cut thin tapes such as Kapton®
- Digital length adjustment
- Accepts tape widths from .5" to 1.2"
- Cuts lengths from 1.2" to 39"
- Adjustable pressure feed to help prevent curling of tape
- Manual override of preset lengths
- Photocell actuated feed mechanism & cutter or push-button feed & cut
- Cabinet made of flame-retardant material (auto ignition of 896°F / 480°C)
- Comes with a 3" core
- Many available accessories are available for this machine. Contact us for details.
- Accuracy of tape length is /-.04", dependent on type of material
- Made in Japan
- Tape Width - 0.5" to 1.2"
- Cut Length - 1.2" to 39"
- Max Outside Diam of Roll - 7"
